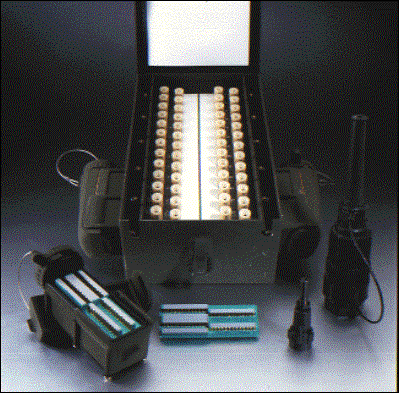

J-1077A/U DISTRIBUTION BOX,
J-2317A/U DISTRIBUTION BOX,
U-185B/G, U-186C/G, U-187A/G
26 PAIR CONNECTORS

The above listed items make up part of those components available to provide a 26 pair connecting system designed for mobile, transportable and semi-permanent military communication facilities.



SYSTEM FEATURES:

System comprised of 26-pair cable assemblies, 26-pair
   connectors and distribution boxes.

High-reliability 26 pair connectors are designed for speedy, foolproof
   interconnections under extreme field conditions, are impossible to mismate, even in
   the dark.

26 pair plugs mate interchangeably with both receptacles and plugs, permitting
   connection of either cable end to any other cable end of distribution box.

Redundant 26 pair design provides 104 contacts for 52 cable conductors (26 pairs)
   assures circuit continuity with up to 50% contact damage (jumpers linking redundant
   contact pairs are welded for reliability).

Rugged, waterproof 26 pair connectors resist wear and damage caused by dragging
   on the ground or through water, even without covers.

Four standard types of 26-pair cable assemblies are available:

250 ft. cable with two plugs and cable reel.
250 ft. cable with two plugs.
25 ft. cable with two plugs.
15 ft. cable with one plug and one stripped, dressed and identified end.
(other lengths available on request)

Cable reel with hold-down strap accommodates up to 250' of cable, permits free
   unreeling under all conditions.

Two types of distribution boxes are available:

1) Larger model contains four receptacles, each connected to one of four sets of 52
    binding posts, a total of 208 binding posts.
2) Smaller model contains two receptacles connected in parallel and to one set of 52
     binding posts.

Distribution box binding posts facilitate connection of stripped cable wires with
   spring-loaded, cam-action jaws.
Special contact test assembly without jumpers permits testing plugs and receptacles,
   contact by contact, quickly and easily.




Download Datasheet
